YSH-D系列

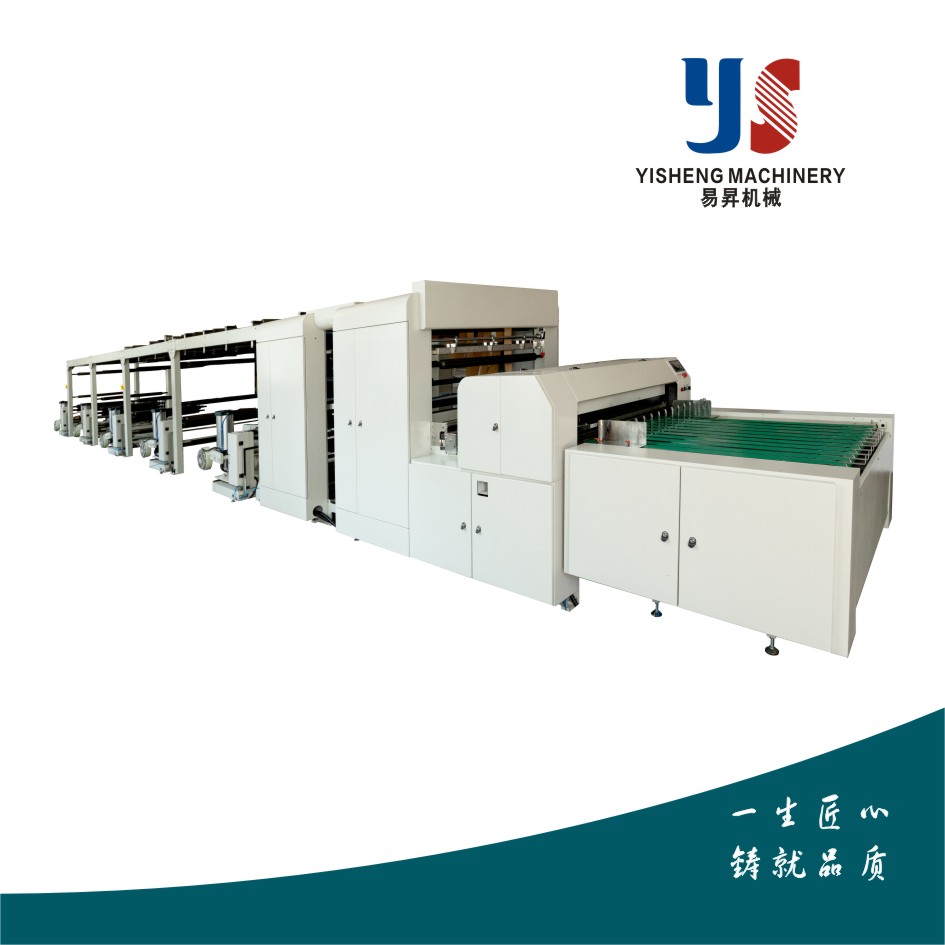

Full Automatic Intelligent High-speed Crosscutting machine(Automatic conveyor belt)
-
This machine suitable for a lot of paper, film, paper��film laminated etc best jumbo roll cutting machine.It is top quality cutting machine in china.。
Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control etc function.
| 型号 | Model | YSH-1100D | YSH-1400D |
| 原材料最大直径 | Max diameter of material | 1100mm | 1400mm |
| 最大截切宽度 | Max. Diameter Of Unwinding | ￠1400mm | ￠1400mm |
| 纵向分切最小宽度 | Min.width of cutting | 50mm | 50mm |
| 裁切长度 | Length of cutting |
20-1500mm |
20-1500mm |
| 裁切速度 | Speed | 30-200times/min | 30-200times/min |
| 裁切精度 | Precision | ±0.2mm | ±0.2mm |
| 电源总功率 | Total Power | 9kw | 11kw |
| 机器重量 | Weight | 4000kg | 4200kg |
| 外形尺寸 | Overall dimension (LxWxH) | 6000x1900x1400(mm) | 6000x2200x1400(mm) |
